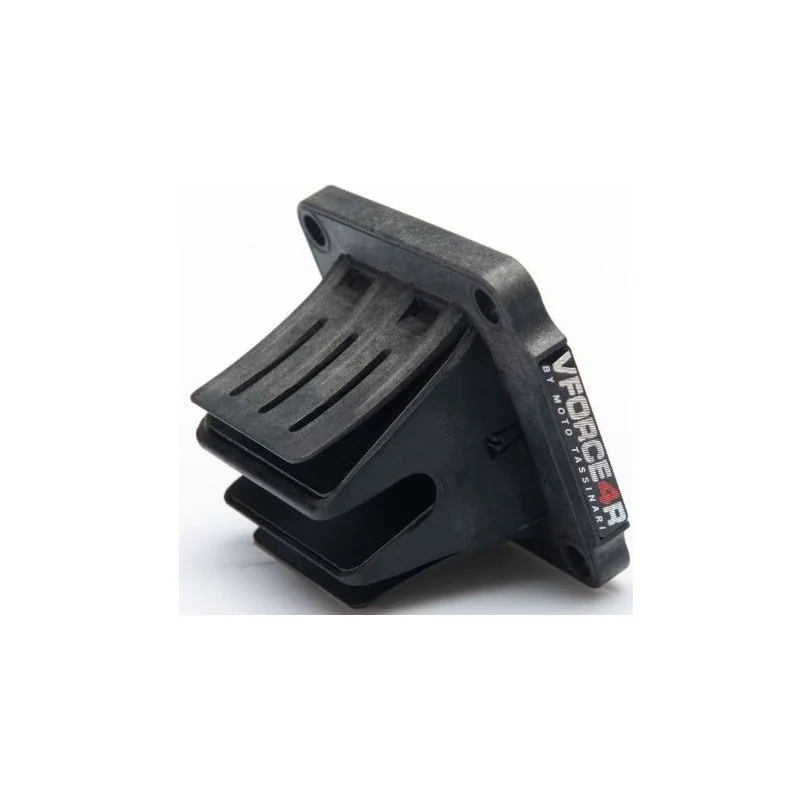

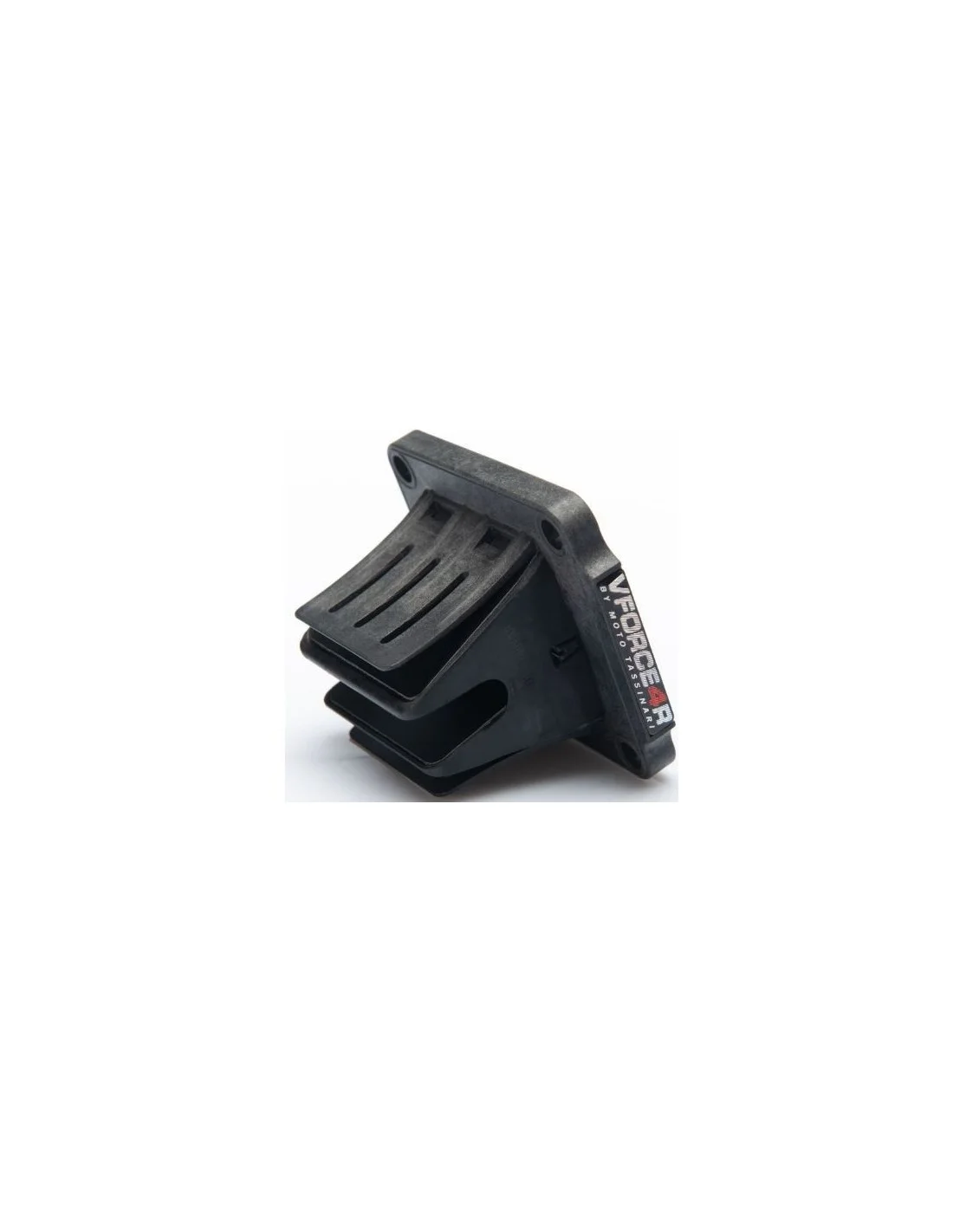

Membran VForce 4R SX 85 2003- / TC 85 2014-

  • -10%
Membran VForce 4R SX 85 2003- / TC 85 2014-
Membran VForce 4R SX 85 2003- / TC 85 2014-

Membran VForce 4R SX 85 2003- / TC 85 2014-

151,20 €
-10%
168,00 €
151,20 € 168,00 €
168,00 €
-10%
Menge
Suchen Sie nach kompatiblen Teilen FĂĽgen Sie Ihr Fahrrad hinzu
VerfĂĽgbarkeit: VerfĂĽgbar

Stellen Sie mir eine Frage Scrivici il tuo dubbio sul prodotto ed il nostro team di esperti ti risponderà il prima possibile
Bester Preis garantiert Haben Sie einen besseren Preis gefunden? Melden Sie es uns, um es von uns zu erhalten.
Benötigen Sie weitere Informationen? Siehe unsere FAQs oder schreiben Sie uns!
  • Schneller Versand und Lieferungen Schneller Versand und Lieferungen
  • Kostenloser Versand fĂĽr Bestellungen ĂĽber 100 Euro Kostenloser Versand fĂĽr Bestellungen ĂĽber 100 Euro
  • Größenumtausch und RĂĽckgabe innerhalb von 30 Tagen Größenumtausch und RĂĽckgabe innerhalb von 30 Tagen

Beschreibung

The unique design of the VForce reed valve system features double the reed tip surface over a conventional reed valve design. This has two major benefits: 1) The reed petals only travel half the distance as a conventional reed valve design to get the same airflow. 2) Because the reed petals only need to travel half the distance of that on a conventional reed valve design, there is a greater chance of them being fully opened as well as a better chance of sealing when they are "closed". A reed petal never truly "closes" in a classic sense, as it is always in movement. Consider this, an engine operating at 8,000 RPM results in a reed petal opening and closing 133 times in one second. This fact, sheds light on another VForce advantage. Since the petals are only traveling half the distance, they generally last longer as they receive less wear than the reed petals on a conventional reed valve design.

STANDARD VFORCE REED VALVE FEATURES

  • Double the reed tip surface over a conventional reed valve design
  • Increased bottom end, stronger mid-range and longer top-end
  • Greater efficiency due to reduced reed petal travel
  • More airflow means more horsepower
  • Reduced reed petal wear
  • Screw free design eliminates risk of screws going through motor
  • Screw free design enables rapid reed petal changes

IMPROVED VFORCE4 FEATURES

  • All-new reed petal resin system, carbon fiber and lay-up
  • Pre-curved reed petal ensures better seal at tip
  • Wider reed cage for maximum airflow
  • Combined reed tip area increased by 10.5% resulting in increased total air flow
  • Airfoil shape added to cage tip to increase air velocity from outer ports
  • Long reed stops added to progressively slow petal tip velocity, for increased petal durability
  • Reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape

ALL-NEW VFORCE4R FEATURES

  • Rubber overmodling on reed tip surface of cage to further enhance petal life
  • Extended reed petal stops
  • Pre-curved reed petal ensures better seal at tip

WHAT'S INCLUDED WHEN I PURCHASE THE VFORCE4R REED VALVE SYSTEM?

Moto Tassinari and VForce4R decals, detailed installation instructions, complete VForce4R reed valve system (including reed petals) and gaskets.

Artikeldetails

4R85A
1 Artikel

Recensioni

Domande

Warum bei WDracing kaufen?

  • Kostenfreier RĂĽckversand bei falscher Größe.
  • Sie können diesen Artikel innerhalb von 30 Tagen zurĂĽckgeben

  • Wenn Sie dieses Produkt kaufen, erhalten Sie Prämienpunkte

  • Price Match Haben Sie einen besseren Preis gefunden? Lassen Sie es uns wissen, wir können es zusammenbringen!

Fahrradzubehör

  • Ktm
    • SX 85
      • Von 2003 bis 2026
  • GasGas
    • MC 85
      • Von 2021 bis 2026
  • Husqvarna
    • TC 85
      • Von 2014 bis 2026
